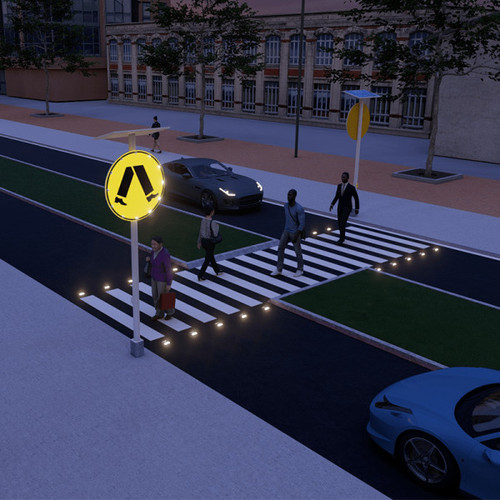

This commercial grade solar pedestrian light system offers an advanced, sustainable solution for enhancing safety and visibility across various outdoor environments. Engineered to meet the stringent requirements of Australian standard AS1906.1, these lights are ideally suited for use in roadways, car parks, truck depots, railways, construction zones, and other high-traffic areas. The system’s timer-activated mechanism synchronizes the dynamic edge-lit LEDs on the sign face, delivering a highly visible and attention-grabbing visual cue that improves both pedestrian and vehicular awareness in low-light conditions. The sign’s illumination, combined with its reflective 3M Class One sign face, ensures optimal visibility up to 1 kilometer away.
The solar-powered design of the pedestrian lights eliminates the need for external electrical connections, offering significant cost savings and environmental benefits. Each unit is equipped with an 80W solar panel and a 48Ah LiFePO4 battery, providing the system with autonomy for over five nights, depending on user settings. The solar panels recharge efficiently within approximately six hours of sunlight, ensuring that the system operates year-round, even in areas with extended periods of low sunlight. This high-capacity battery, combined with the wireless communication between components, allows for a simple installation process and ensures reliable performance without the need for complex wiring.
Constructed to endure even the most challenging environmental conditions, the solar pedestrian lights feature an IP65-rated weatherproof enclosure, protecting them from rain, dust, and extreme temperatures ranging from 0°C to 70°C. The system’s yellow and black color scheme is designed to increase visibility, while the modular construction allows for flexible mounting on posts with diameters ranging from 76mm to 90mm. The backlit sign face, measuring 600mm in diameter, is illuminated by high-output SMD LEDs that create an animated effect upon activation, enhancing the system's visibility and ensuring it remains effective in all lighting conditions.
Designed for easy, plug-and-play installation, the solar pedestrian lights provide a highly effective, environmentally friendly solution to improve pedestrian safety. The system’s timer-activated feature ensures energy-efficient operation, illuminating only when needed and conserving power when not in use. With the flexibility to be installed in a wide range of outdoor settings, the system’s wireless components and simple installation process make it both user-friendly and versatile. Backed by a two-year warranty, these lights offer a durable and reliable solution that enhances pedestrian safety while minimizing environmental impact.
The entire sign face is backlit illuminated. High output LEDs border the class one 3M reflective sign face which become animated on activation.
PRODUCT: Pair of Solar Pedestrian Lights - Timer Activated
SYNCHRONIZED: The timer will trigger the solar lights on both sides of the road
INCLUDES: Solar panels, rechargeable battery, backlit pedestrian crossing signs, wireless communication
ACTIVATION: Automatically activated by the timer - triggers the synchronised animation of the pedestrian sign edge lit LEDs
CONNECTION: The connection between all components is wireless
APPLICATIONS: Roadways, car parks, truck depots, railways, construction zones, paths, distribution centers, factories
STANDARD: Signs manufactured to Australian standard AS1906.1 and visible up to 1km away
SIGN FACE: 600mm (diameter) class one reflective (it will come with the Pedestrian Crossing signs unless requested otherwise)
COLOUR: Yellow and black
SOLAR PANEL: 80W
BATTERY TYPE: 48Ah LiFePO4 (Lithium Iron Phosphate)
AUTONOMY: >5 Nights, setting dependent
LIGHT SOURCE: SMD LED
RECHARGE: 6 Hours
MOUNTING HEIGHT: 2.1 - 3m (recommended)
WARRANTY: 2 years (for faulty workmanship or component failure not influenced by external means)
IP RATING: IP65 (weatherproof)
ILLUMINATION: The entire sign face is backlit illuminated.
POWER: All component modules are solar powered and fully wireless (no 240V or 12V wireless required)
INSTALLATION: Simple plug and play
MOUNTING: Standard posts 76-90mm (not included - baseplated and inground posts can be optionally added, please contact us)
AMBIENT TEMP: Operating free-air temperature range from 0°C to 70°C
NOTE: Please let us know the times you require for timer activation (eg 9am-1pm, 3pm-6pm)
